Description

Product Description

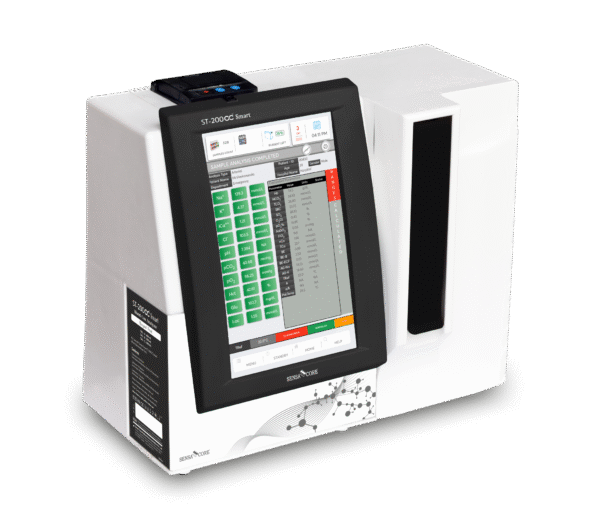

The ST‑200 CC Smart is a next-generation hybrid blood gas and electrolyte analyzer designed for near-patient testing or laboratory use. It combines long-lasting maintenance-free ISE electrodes with thick-film technology for hematocrit, glucose, lactate, and dissolved oxygen. It delivers up to 28 results from a single sample, with fast turnaround and economical operation.

Key Benefits

• Combined blood gas, electrolyte, and metabolite analysis in one compact system
• Low cost per sample with snap‑in electrodes and plug‑and‑play reagent modules
• Fast results: up to 30–60 tests per hour, result in ~60–120 seconds
• Minimal maintenance due to room-temperature stable reagents and no refrigeration requirement
• Android-based touchscreen interface with optional battery operation for portability
• Supports external devices like barcode scanner, mouse, keypad and LIS integration

Core Features

• Sample volume: approx. 100 µL (capillary/micro mode)
• Parameters measured: pH, pCO₂, pO₂, Hct; electrolytes (Na, K, Li, Cl, iCa); metabolites (glucose, lactate)
• Calculated values (up to 17): Hb, HCO₃, BE, BE‑B, BE‑ECF, TCO₂, AG, AG(K), O₂ Sat, O₂ Ct, SBC, nCa, TCa, pO₂%, A, AaDO₂, a/A, mOsm
• Result time: typically 60–120 seconds per sample
• Throughput: up to 60 results/hour
• Sample types: whole blood, serum, plasma, diluted urine, QC material
• Storage capacity: up to 100,000–200,000 samples
• Display: capacitive 7″ or 10″ high-definition touchscreen LCD
• Operating system: Android, upgradable via Wi‑Fi
• Connectivity: barcode scanner, mouse, keypad (any two at a time), LIS via serial port
• Printer: built-in 2-inch (or optional 3-inch) thermal printer
• Dimensions: approx. 15.2″ W × 13.2″ H × 8.3″ D (~38.5 × 33.5 × 21 cm)
• Weight: approx. 5–8 kg depending on configuration
• Input voltage: 110/115 VAC or 220 VAC, 50/60 Hz, ~0.75 A
• Operating temperature: 5–30 °C (or 10–30 °C depending on source), humidity <85%
• External battery support: optional for up to 4–10 hours of mobile operation
• Language support: 94+ languages

Recommended Use Cases

• Critical care settings such as ICU, ER, NICU for combined blood gas and electrolyte monitoring
• Small to medium clinical labs requiring compact, fast, and multifunction analyzers
• Point-of-care environments where minimal maintenance and portability are priorities
• Facilities needing plug-and-play operation with flash calibration and result export to LIS

Additional Information

• Maintenance is limited to replaceable reagent packs, electrodes, and pump tube—no cold chain requirement during storage or shipping :contentReference[oaicite:1]{index=1}
• Upgradable to different parameter combinations (typically up to 14–16 combinations) depending on clinical needs :contentReference[oaicite:2]{index=2}
• Reagents and electrodes remain stable at room temperature, improving logistics and reducing costs :contentReference[oaicite:3]{index=3}
• Optional internal/external barcode scanner and barcode-supported operation :contentReference[oaicite:4]{index=4}
