Description

Key Benefits

• Space-Efficient Design: Occupies less than 0.68 m², offering high throughput per unit area.
• High Throughput: Capable of performing up to 200 tests per hour.
• Continuous Loading/Unloading: Allows uninterrupted operation with no-pause loading and unloading of samples and reagents.
• 24-Hour Refrigeration: Reagent area maintains a temperature of 10°C ± 3°C for 24 hours.
• Advanced Washing Technology: Features non-contact vortex mixing and intelligent magnetic field design to reduce non-specific binding and enhance sensitivity.
• Accurate Incubation: Single cup design with five-sided heating at 37°C ± 0.3°C ensures uniform incubation.
• Stable Measuring Chamber: Bidirectional temperature control maintains a stable background temperature, preventing light cross-contamination for high detection precision.

Core Features & Specifications

• Sample Positions: 72
• Reagent Positions: 20
• Reagent Storage: 24-hour refrigerated area at 10°C ± 3°C
• Throughput: Up to 200 tests per hour
• Dimensions: 78 (H) × 90 (W) × 75 (D) cm
• Weight: 127 kg
• Measurement Technology: Direct chemiluminescence with magnetic microbead separation
• Pipetting Technology: Teflon-coated titanium needle with liquid level, clot, and collision detection
• Software Interface: Intelligent UI with real-time status display and remote diagnostics support

Recommended Use Cases

• Small to medium-sized clinical laboratories
• Hospitals requiring high-throughput immunoassay testing
• Facilities with limited space needing efficient diagnostic solutions

Additional Information

• Compatible with MAGLUMI® reagent kits, offering a broad test menu of up to 166 parameters.
• Features intelligent washing technology and bidirectional temperature control for accurate and reliable results.
• Supports continuous operation with no-pause loading/unloading of samples and reagents.

Summary

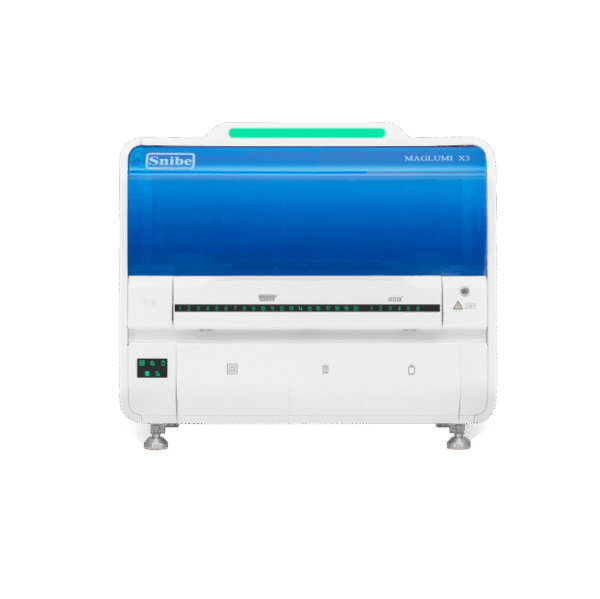

The MAGLUMI X3 is a compact and efficient CLIA system that combines high throughput with advanced technology, making it an ideal choice for small to medium-sized laboratories seeking reliable and space-saving diagnostic solutions.
