Description

Key Benefits

• Fast results: complete analysis of dog, cat, cow, or horse in ~60 seconds with all parameters shown on one screen :contentReference[oaicite:2]{index=2}
• Supports six preset animal types plus three customizable types—makes setting up repeat workflows easier and reduces manual counting :contentReference[oaicite:3]{index=3}
• Panic Value Recounting: when results exceed acceptable limits, the system automatically re-measures at adjusted dilution for atypical samples :contentReference[oaicite:4]{index=4}
• Fully automatic cleaning and priming: includes nozzle cleaning, clog removal, fluid path wash at startup and shutdown for maintenance-free operation :contentReference[oaicite:5]{index=5}

Core Features & Specifications

• Parameters: Up to 21 species‑specific clinical parameters (e.g. WBC, LY%, MO%, EO%, GR%) for dog, cat, cow, horse; 13 parameters for smaller animals (rat, mouse, etc.) :contentReference[oaicite:6]{index=6}
• Sample Volume: 30 µL in normal/low dilution mode; approx. 10 µL (high dilution), 5 µL (higher dilution) :contentReference[oaicite:7]{index=7}
• Throughput: Approx. 60 samples/hour :contentReference[oaicite:8]{index=8}
• Reagents: Four‐component system (cyanide‑free hemolyzing reagent, diluent, two detergents) :contentReference[oaicite:9]{index=9}
• Dimensions: 230 × 450 × 428 mm (W×D×H); Weight: ~20 kg :contentReference[oaicite:10]{index=10}
• Power: MEK‑6550J: 110–127 VAC; MEK‑6550K: 220–240 VAC; < 120 VA consumption :contentReference[oaicite:11]{index=11}
• Output: Color touchscreen display with built-in thermal printer and optional barcode reader/data management software (DMS‑Lite) :contentReference[oaicite:12]{index=12}

Recommended Use Cases

• Veterinary clinics and hospitals serving dogs, cats, cows, horses, and small mammals
• Situations requiring rapid diagnostic turnaround and minimal sample volume
• Labs needing automated workflows and high-throughput testing for varied animal types

Additional Information

• Expandable animal database supports up to nine species configuration including exotic animals like zebra, dolphin, kangaroo :contentReference[oaicite:13]{index=13}
• Automatic panic-value recount reduces risk of inaccurate readings for outlier samples :contentReference[oaicite:14]{index=14}
• Validated for canine/feline use: precision CV for WBC <4%, HGB <3%, HCT <3%; platelet counting less accurate in feline species—flagging recommended :contentReference[oaicite:15]{index=15}

Summary

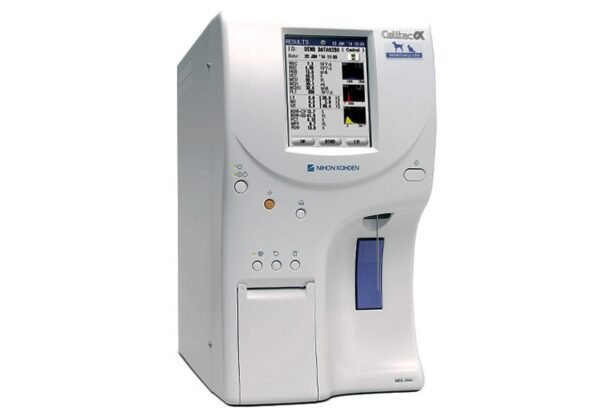

The Celltac α VET (MEK‑6550) combines speed, minimal sample volume, multi-species adaptability, and automated maintenance to deliver veterinary hematology testing tailored for modern clinical needs. Designed for high throughput and reliable operation, it’s ideal for veterinary diagnostics requiring quick, accurate blood profiling across diverse animals.
